Foundations



Requirements for the foundations of an area storage system

  • Load max. 30 N/cm2  alternating,
  • Anchorage with expansion anchor or chemical anchor studs,
  • Drill hole depth max. 180 mm,
  • The load capacity of the floor must be in accordance with the required load,
  • Grouting of the foundation plates after installation with shrink free casting compound will be provided by the customer,
  • The floor tolerance must be in accordance with DIN18202, sheet 3, line 3 (on the complete length not more than 15 mm),


This information are without any obligations and only reference values. The stated values, especially the exact load capacity, can only be defined after clarification of all details during the design period.


back >>

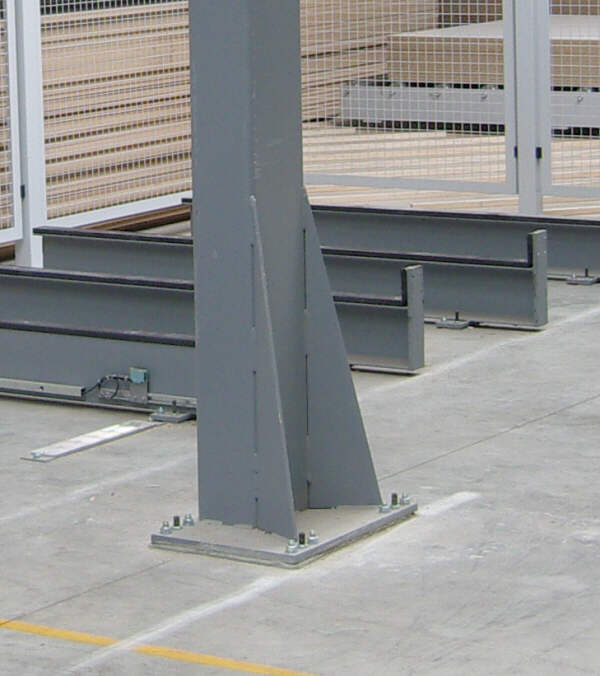

Base plate for area storage frame
