GANTRY SYSTEMS


Gantry systems for loading and stacking offer a simple and flexible way to effectively automate production lines and processes.

The systems are individually designed to meet the requirements of the customer. The possible applications for their use are numerous and range from general handling technology, in flexible production installations, in the packaging and logistics sector, to automatic press loading and unloading, to name but a few examples.

The use of automated loading and stacking systems provides you with a number of advantages that will affect the competitiveness and profitability of your production. With high dimensional accuracy, gentle part handling and optimum quality are guaranteed.


Video-Download






A technical design which makes the difference


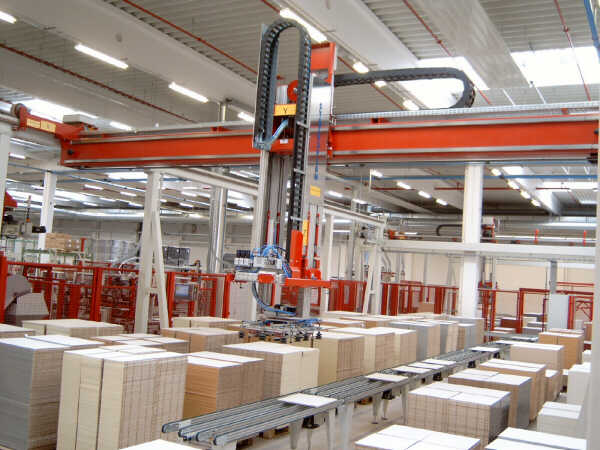

  • Guiding system for the lifting movement

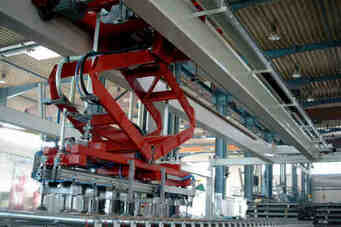

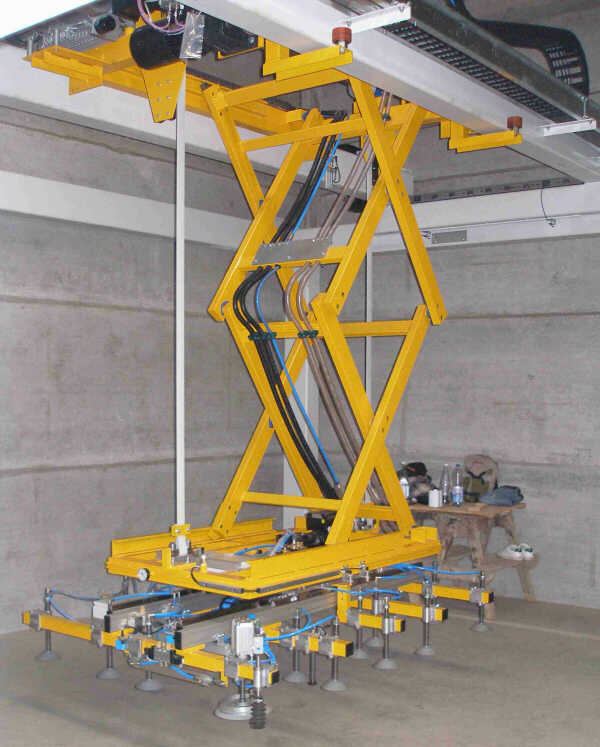

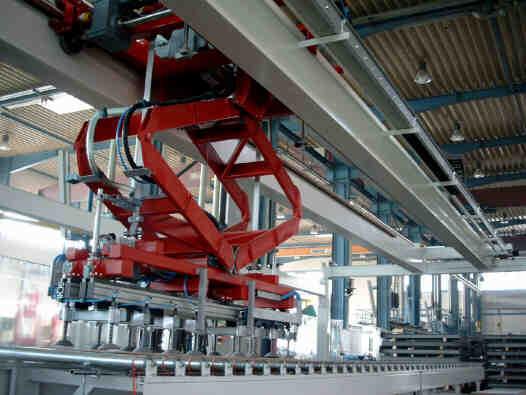

    Depending on the requirements and the structural conditions, scissor systems or column systems, if necessary also telescopic, are used to guide the lifting movement exactly.
  • Robust, industry-suitable technology

    Torsion resistant steel structure, optional servo technology (incl. energy recovery modules), laser measurement systems for gantry positioning etc. are the basis for reliable, state-of-the-art technology.
  • Gentle material handling improves the product quality

    The damage-free handling of the materials is an important factor. The gantry system operates continuously at a comparatively high speed.

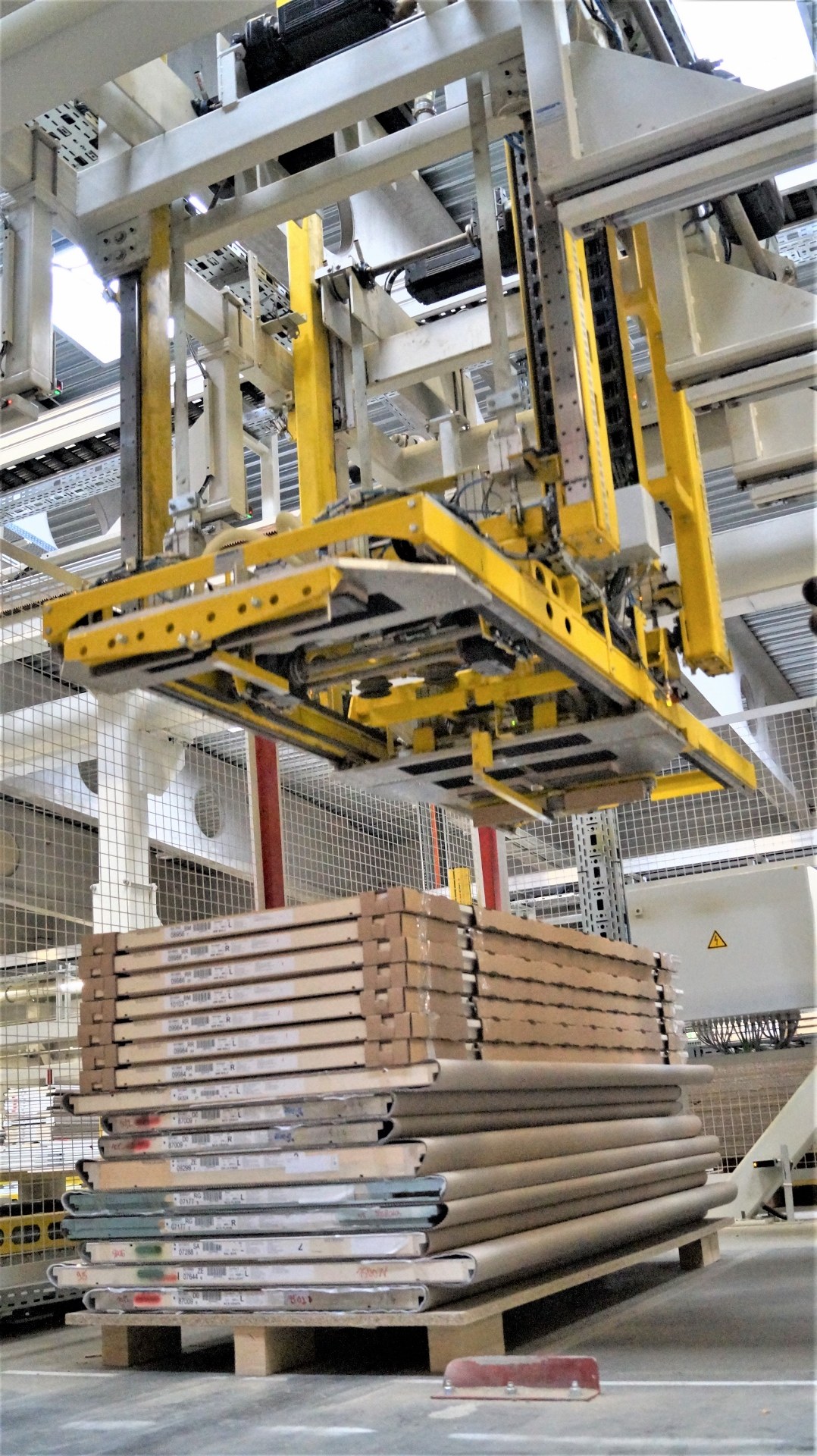

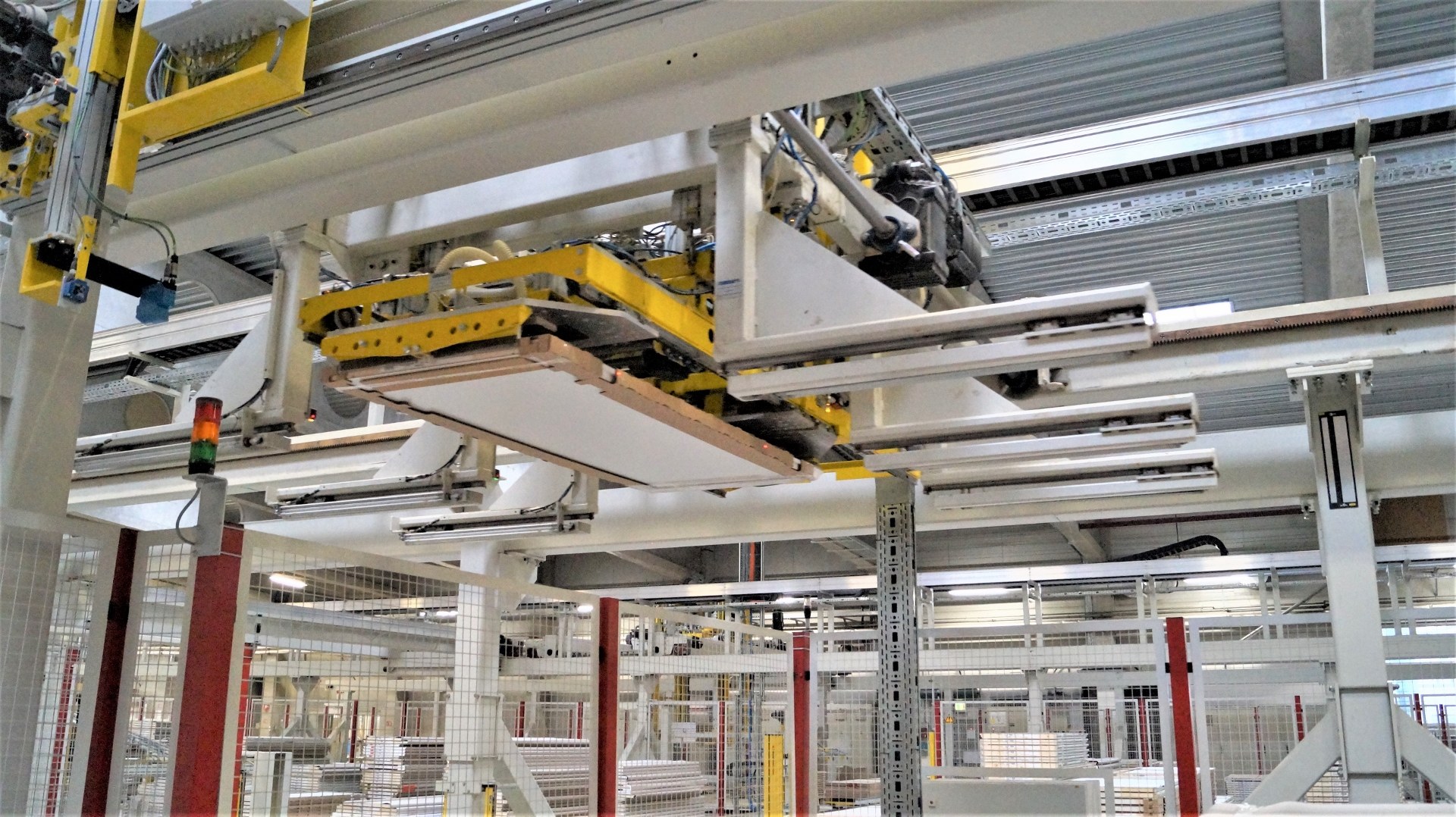

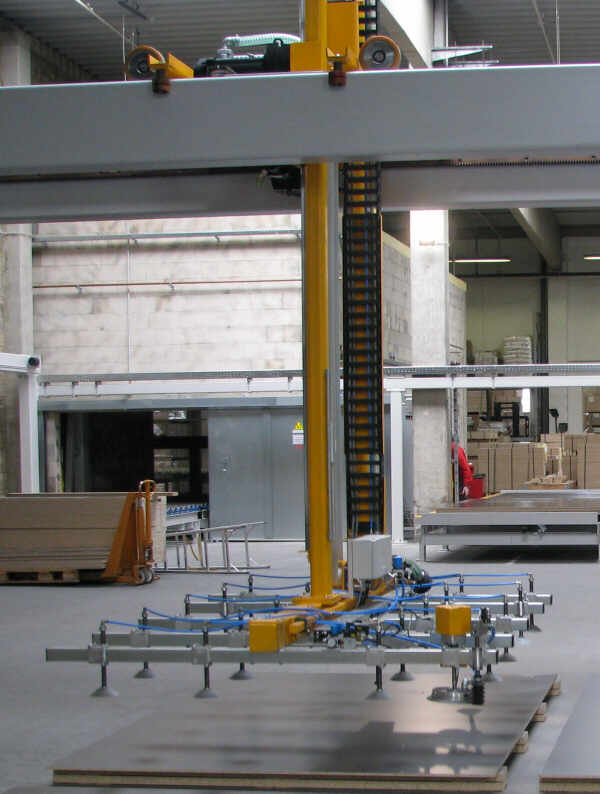

  • Load-carrying devices

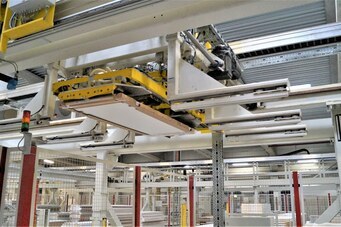

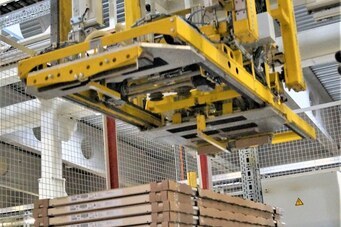

    The feeding and stacking gantry system can be used very individually and flexibly thanks to the use of various load carrying devices. The load carrying devices are specifically adapted to the work pieces.

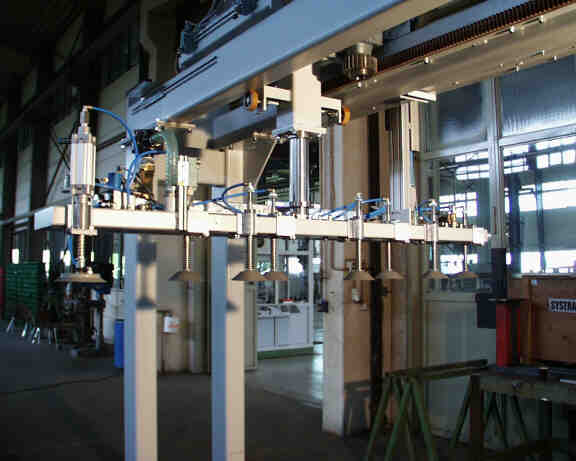

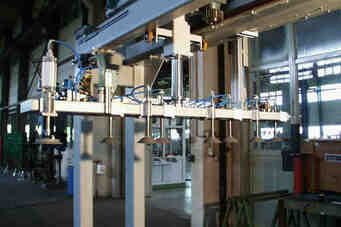

    • Suction cups or suction boxes
    • Clamps
    • Magnets
    • Needle gripper
    • etc.

  • Handling of the most various materials

    The most various materials can be handled, such as:
    • Particleboard and wood-based panels
    • Plastic sheets
    • Sheet metal and steel plates
    • Doors and sectional door elements
    • Tire and green tires
    • Treads
    • Acoustic panels and insulation panels
    • Cement and mineral libreboards
    • Gypsum cardboards and gypsum fibreboards (dry-wall panel)
    • Wall, ceiling and floor boards
    • Sandwich elements, foamed PU
    • etc.

  • Auxiliary equipment

    Auxiliary equipment can be integrated, for example:
    • Roller conveyors, chain conveyors, angular transfers,
    • Lateral transfer trolleys or Automated Guided Vehicles (AGVs)
    • Transfer and flipping devices for boards and stacks.
    • Palette storage devices for Euro and special pallets.
    • Separating and feeding devices for hard interleaving layers.
    • Film feeding devices and packaging stations.
    • Finishing and reworking stations.
    • etc.




DANA

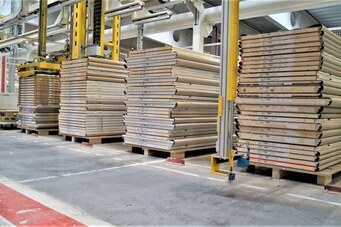

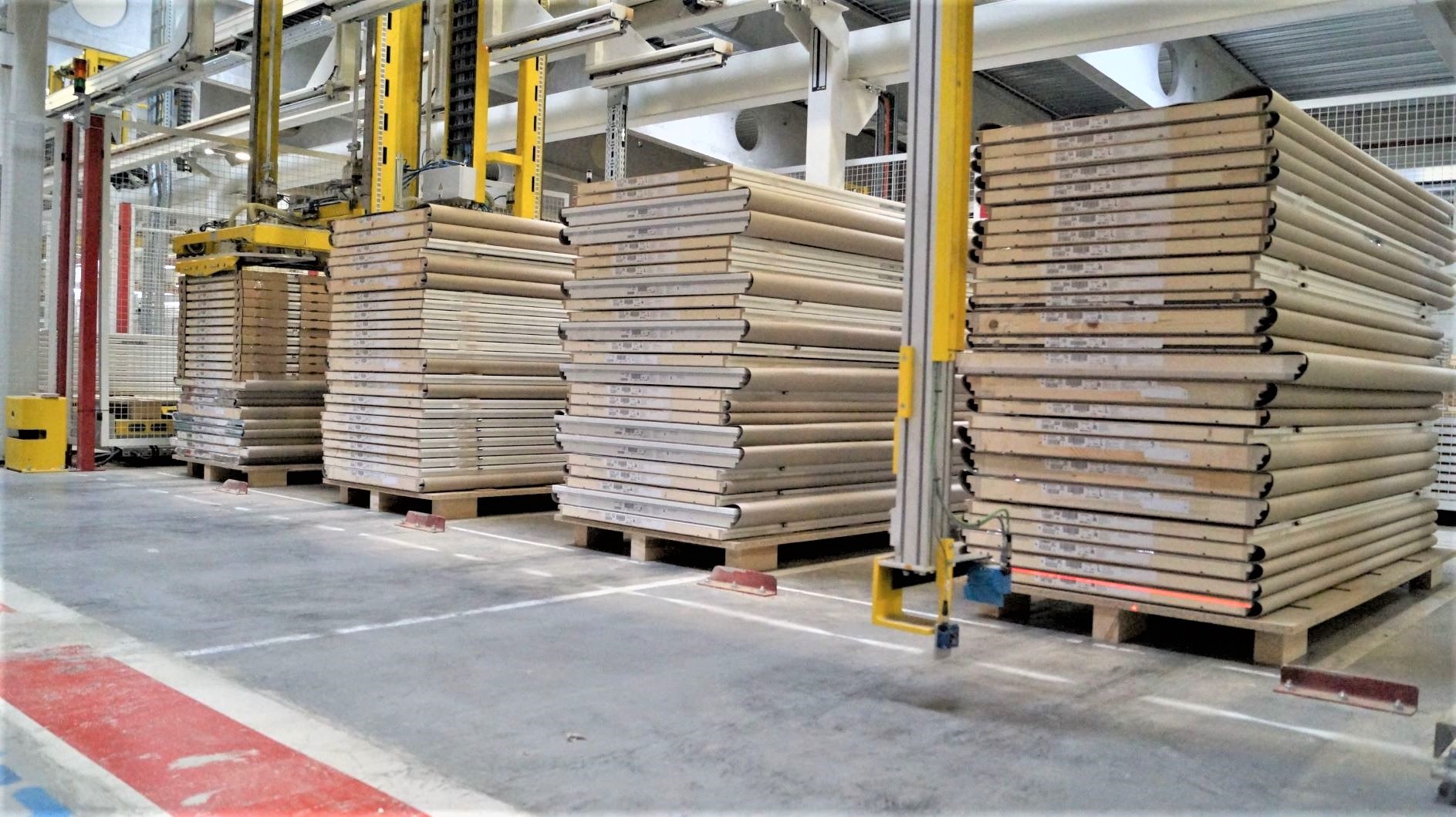

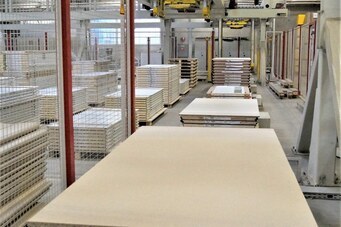

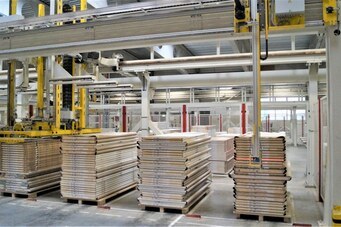

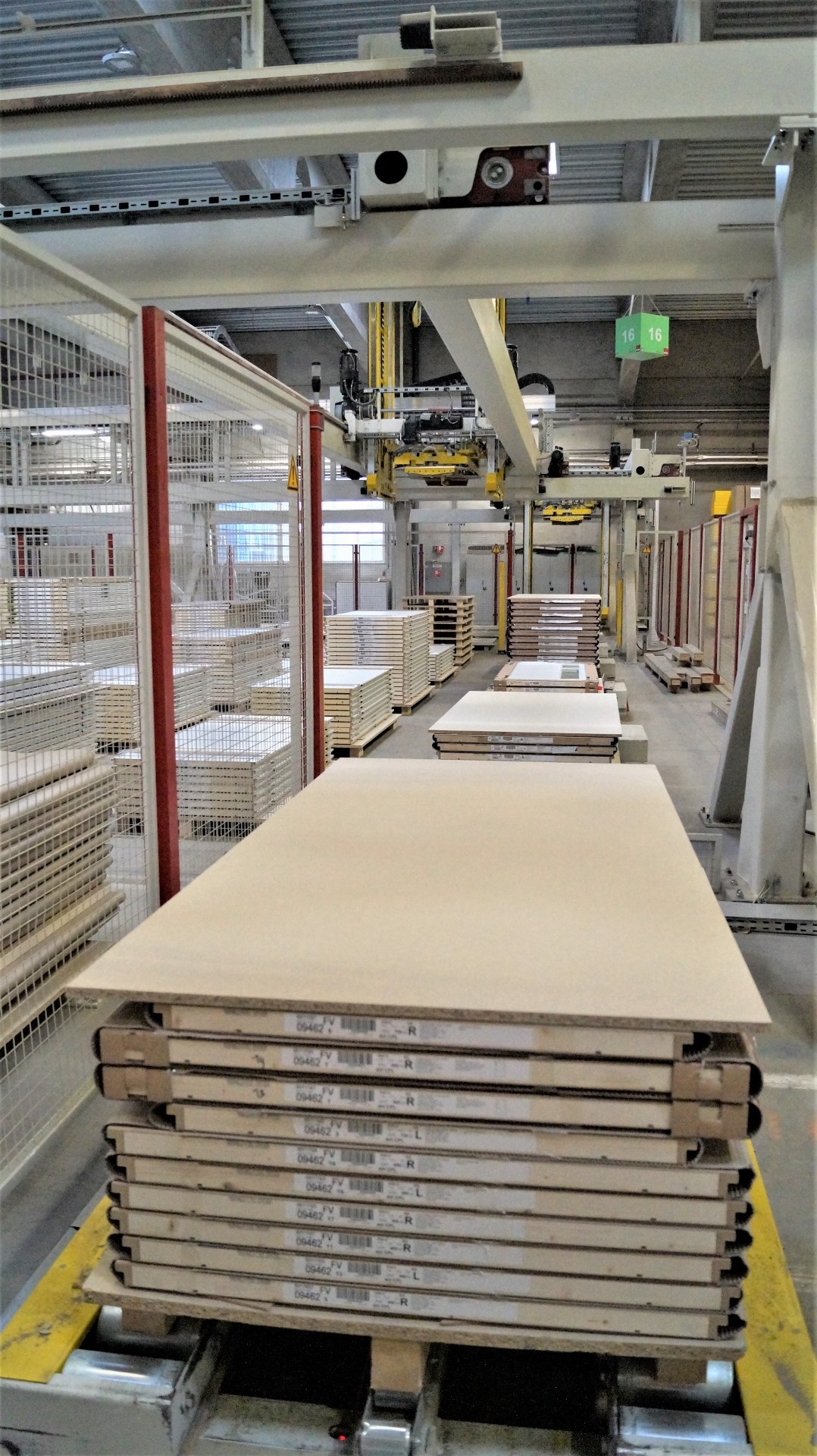

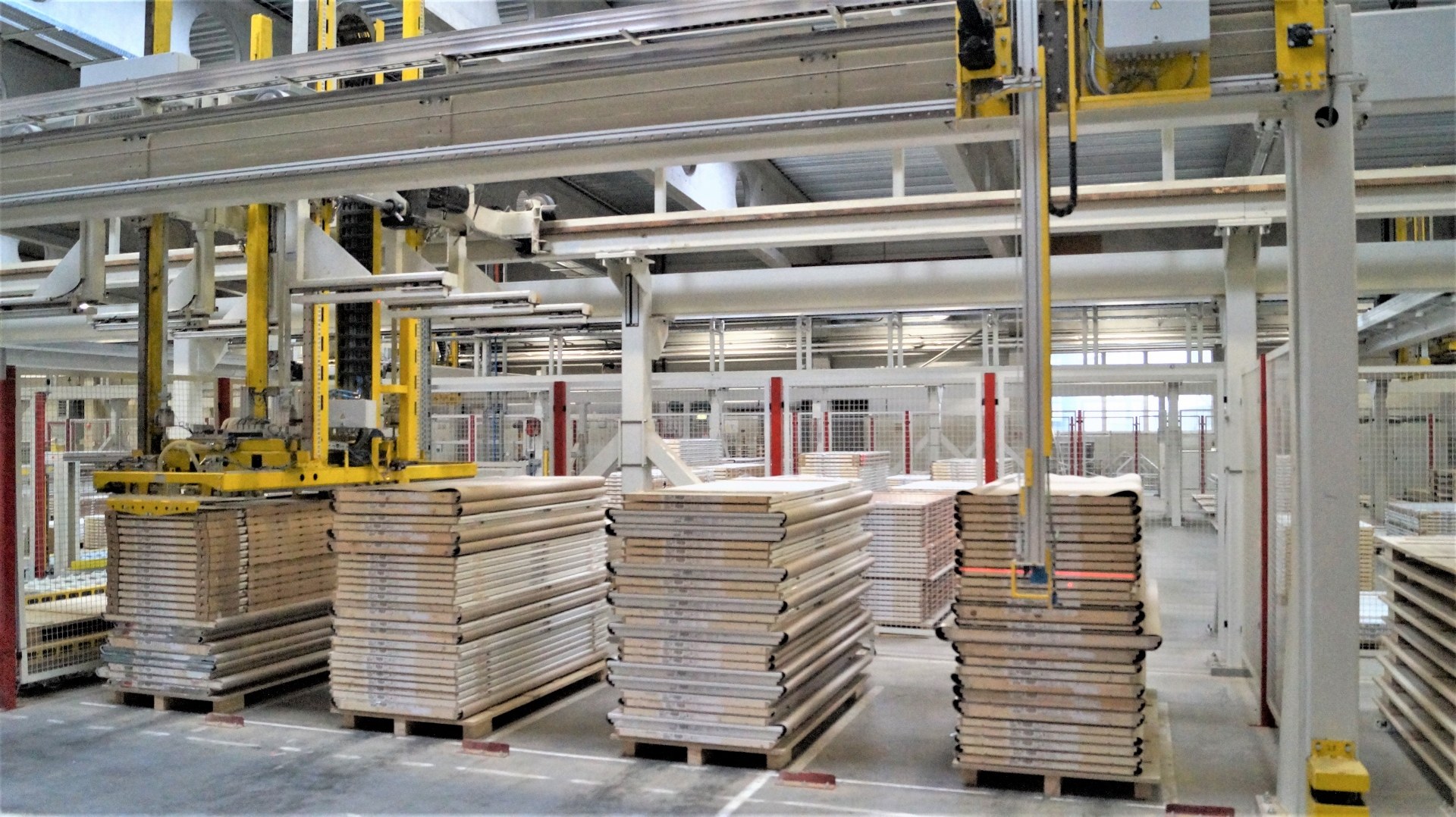

Horizontal storage system with integrated stack transport for order picking doors, JELD-WEN Türen GmbH in Spital am Pyhrn



Conti
Press circulation system for lightweight panels, VEROTEC in Lauingen



References






Ganty systems

We are developing solutions today for your future needs

Let us know your individual requirements.
We will work out a concept tailored to your needs.
